LED High Bay Light-SHBL-150WC

LED High Bay Light

Model:SHBL-150WC

Inquiry Now

Inquiry details *





Description:

Product Attributes :

◆Pure cupper heat pipe directly heat sink,transfer speed x200

◆Using LM80 Rated OSRAM/Philips/Nichia SMD EMC3030 LED

◆Widely input voltage range, constant current and constant voltage MEANWELL    driver

◆Snap-in type reflectors,easy installation

◆Scales reflectors with different angle,high light utilization

◆5 years warranty,Tc70ºc 50000hrs

※ Lamp parameter 规格参数

        Power 功率                 150W
     Input Voltage    输入电压          90-305VAC 127-431VDC
Frequency Range   频率范围               47-63HZ
Power Factor(Typ. 功率因数PF>0.98/115VAC PF>0.95/230VAC PF>0.92/277VAC
LED Brand   LED品牌LM80 Rated OSRAM/Philips/Nichia 3030
LED Quantity   LED数量                120pcs
System Consumption     系统功耗              150±1W
LED Luminous Efficiency   LED发光效率              120-130LM/W
IP Rating  防护等级               IP65/67
Junction Temperature    LED结温                        ≤80
Color Temperature        色温       3000K/4500K/5000K/5700K/6500K
Color Rendering Index    显色指数                Ra>80
Light Distribution          配光曲线         Symmetric/round spot  对称式/圆形光斑
Life Span  光源寿命             ≥50,000Hrs(Note3)
The color of the lamp shell  灯具颜色              silver银色
Certification  认证              CE/ROHS

※ Thermal performance test(灯具热成像图)

※ IES TEST (IES测试)

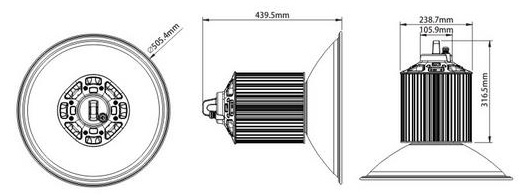

※ Size 尺寸



※ Application 应用场所

Gymnasium,Golf course,sports ground,airport,Shipyard etc
