LED High Bay Light-SHBL-500WH

LED High Bay Light


Inquiry Now

Inquiry details *



Product Attributes :

◆Instead of 1000W sodium lighting,energy saving 50%

◆Pure cupper heat pipe directly heat sink,Fins structure,transfer speed x200

◆Using LM80 Rated OSRAM/CREE 3535 LED

◆Widely input voltage range,constant current and constant voltage MEANWELL      driver

◆Light weight, easy to assemble

◆IP67 216o adjustable brackets

◆5 years warranty,Tc70ºc 50000hrs

※ Lamp parameter 规格参数

Power 功率500W
 Input Voltage    输入电压90-305VAC 127-431VDC
Frequency Range   频率范围4763Hz
Power Factor(Typ. 功率因数PF>0.98/115VAC PF>0.95/230VAC   PF>0.92/277VAC
LED Brand   LED品牌LM80 Rated OSRAM/CREE 3535
LED Quantity   LED数量220PCS
System Consumption     系统功耗500±1W
LED Luminous Efficiency   LED发光效率90-100 Lm /W
IP Rating  防护等级IP67
Junction Temperature    LED结温≤80
Color Temperature        色温3000K/4500K/5000K/5700K/6500K
Color Rendering Index    显色指数Ra80
Light Distribution          配光曲线Symmetric/round spot  对称式/圆形光斑
Life Span  光源寿命≥50,000Hrs(Note3)
The color of the lamp shell  灯具颜色black 黑色
Certification  认证CE  ROHS





 Mechanical specification 机械尺寸


※Application 应用场所

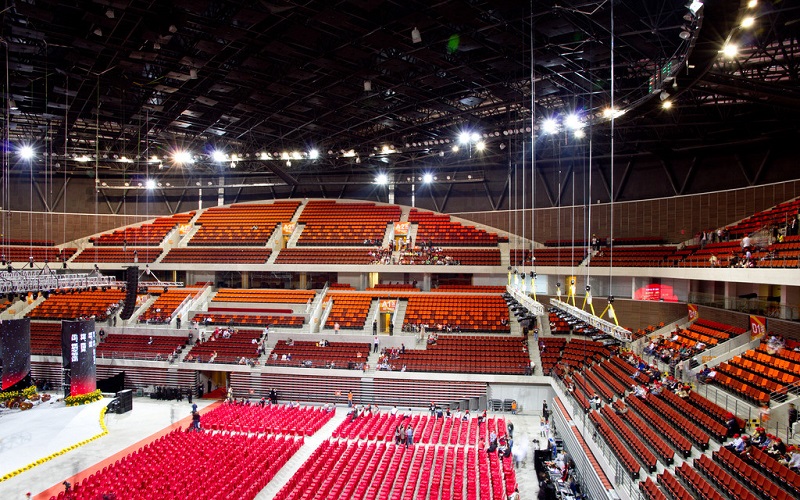

Gymnasium,Golf course,sports ground,airport,Shipyard etc



There is no doubt that light can stimulate human body and generate obvious physical reaction. Physical doctor Baba Pendse focuses on the effect of LED lamps on human psychological health. He believes the LED Lighting can adjust the biological cycle and thus affect sleep, sensitiveness and body function. In contrast, strong light especially at night can help people to stay awake. So according to Rea, people’s desire for the light is out of the desire to grasp information. The clearer and brighter the environment is, the more information you can get. “Under bright led area light we can read leisurely or easily see what the children are doing.”

Under the same LED Lights, it doesn’t necessarily mean people will gain the same emotion since everybody reacts differently to light just like how they reacts to food. So you can barely find a specific lamp that can satisfy everyone in the office.
