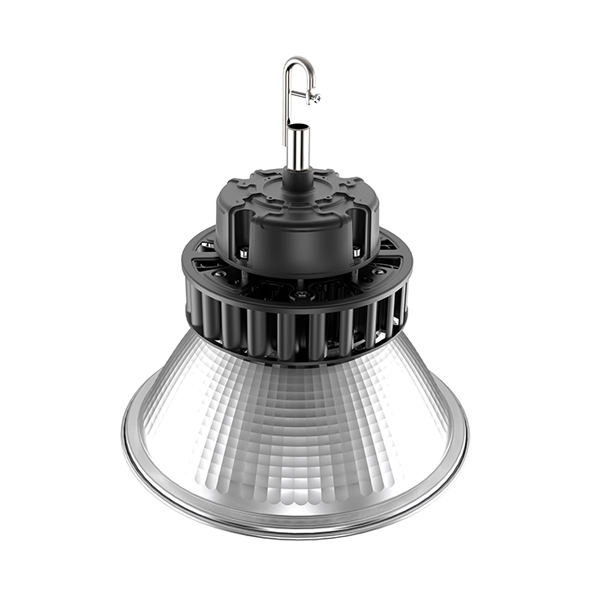

LED High Bay Light-SHBL-60WG

LED High Bay Light


Inquiry Now

Inquiry details *



Product Attributes :

◆Pure cupper heat pipe directly heat sink,transfer speed x200

◆Using LM80 Rated OSRAM/Philips/Nichia SMD EMC3030 LED

◆Widely input voltage range, constant current and constant voltage MEANWELL    driver

◆Snap-in type reflectors,easy installation

◆Scales reflectors with different angle,high light utilization

◆5 years warranty,Tc70ºc 50000hrs

 Lamp parameter 规格参数

Power 功率60W
 Input Voltage    输入电压90-305VAC 127-431VDC
Frequency Range   频率范围4763Hz
Power Factor(Typ. 功率因数PF>0.98/115VAC PF>0.95/230VAC   PF>0.92/277VAC
LED Brand   LED品牌LM80 Rated OSRAM/Philips/Nichia 3030
LED Quantity   LED数量60PCS
System Consumption     系统功耗60±1W
LED Luminous Efficiency   LED发光效率120-130 Lm /W
IP Rating  防护等级IP65/67
Junction Temperature    LED结温≤80
Color Temperature        色温3000K/4500K/5000K/5700K/6500K
Color Rendering Index    显色指数Ra80
Light Distribution          配光曲线Symmetric/round spot  对称式/圆形光斑
Life Span  光源寿命≥50,000Hrs(Note3)
The color of the lamp shell  灯具颜色black/ silver 黑色、银色
Certification  认证CE  ROHS






High Bay lighting environments are unique, and factory/warehousing applications are especially suited to benefit from advancements in LED lighting technology.

These facilities are some of the largest energy consumers, and frequent lamp/ballast replacements associated with outdated metal halide (HID) and fluorescent lighting results in expensive maintenance, production down-time and business interruptions.

Our LED high bay Light can reduce energy consumption 50-80% over HID metal halide fixtures, and with no lamps/ballasts to replace, operations managers can be confident in the reliability of these fixtures.

We use only the highest quality LED chips available from manufacturers like Osram, Nichia and Philips, and our LED lights are proudly engineered and manufactured in the United States of America,5 Years Warranty.
