LED High Bay Light-SHBL-400WH

LED High Bay Light

Model:SHBL-400WH

Inquiry Now

Inquiry details *





Description:

Product Attributes :

◆Instead of 800W sodium lighting,energy saving 50%

◆Pure cupper heat pipe directly heat sink,Fins structure,transfer speed x200

◆Using LM80 Rated OSRAM/CREE 3535 LED

◆Widely input voltage range, constant current and constant voltage MEANWELL  driver

◆Light weight, easy to assemble

◆IP67 216o adjustable brackets

◆5 years warranty,Tc70ºc 50000hrs

※ Lamp parameter 规格参数

Power 功率400W
 Input Voltage    输入电压90-305VAC 127-431VDC
Frequency Range   频率范围4763Hz
Power Factor(Typ. 功率因数PF>0.98/115VAC PF>0.95/230VAC   PF>0.92/277VAC
LED Brand   LED品牌LM80 Rated OSRAM/CREE 3535
LED Quantity   LED数量200PCS
System Consumption     系统功耗400±2W
LED Luminous Efficiency   LED发光效率100-110 Lm /W
IP Rating  防护等级IP67
Junction Temperature    LED结温≤80
Color Temperature        色温3000K/4500K/5000K/5700K/6500K
Color Rendering Index    显色指数Ra80
Light Distribution          配光曲线Symmetric/round spot  对称式/圆形光斑
Life Span  光源寿命≥50,000Hrs(Note3)
The color of the lamp shell  灯具颜色black 黑色
Certification  认证CE  ROHS





 Mechanical specification 机械尺寸



※Application 应用场所

Gymnasium,Golf course,sports ground,airport,Shipyard etc



Fin shape Aluminium Alloy sink heat sink structure ,large heat dissipation area,good air convection effected by many patent technologies.

It can replace 600W-1000W traditional sodium lamp and with energy save 50%It also fill the gaps of market in radiator.

It has 13 brackets adjustment point,the angle can be used in 216º,lighting irradiation angle can be adjusted.

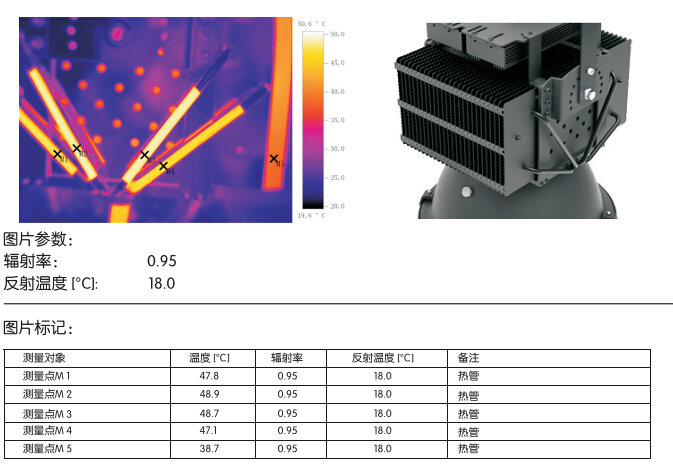

It used cooper heat pipe riveted technology to quickly reduce junction temperature,then it can prolong the life span for led source.

Special design,it can clear the fog,to avoid condensation,improve product quality,prolong the service life.

High color rendering index(CRI) with a wide correlated color temperature(CCT) Range

High efficiency and quality constant current driver makes our products with stable quality,lower power consumption and more energy saving 5 Years Warranty.

Strong directional luminance ability makes it`s easy to control the light and effective to improve the efficiency of the lighting system.

Innovative modeling appearance with more technology elements and personal designs makes our products closer to the customers` needs and feelings
