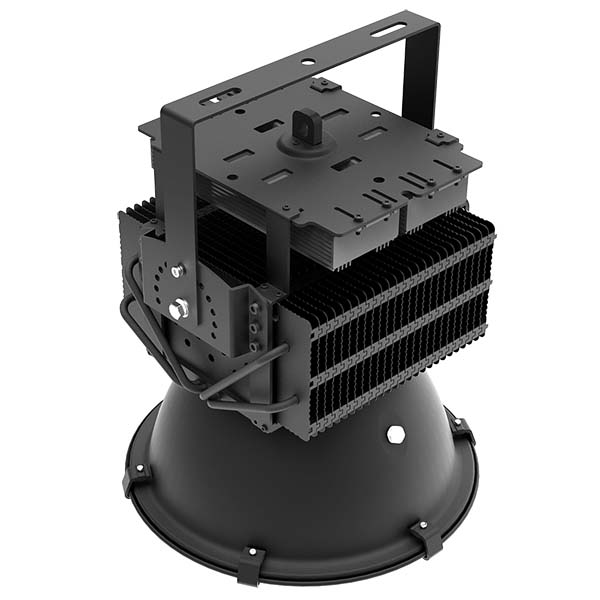

LED High Bay Light-SHBL-300WH

LED High Bay Light

Model:SHBL-300WH

Inquiry Now

Inquiry details *





Description:

Product Attributes :

◆Instead of 600W sodium lighting,energy saving 50%

◆Pure cupper heat pipe directly heat sink,Fins structure,transfer speed x200

◆Using LM80 Rated OSRAM/CREE 3535 LED

◆Widely input voltage range, constant current and constant voltage MEANWELL driver

◆Light weight, easy to assemble

◆IP67 216o adjustable brackets

◆5 years warranty,Tc70ºc 50000hrs

※ Lamp parameter 规格参数

Power 功率300W
 Input Voltage    输入电压90-305VAC 127-431VDC
Frequency Range   频率范围4763Hz
Power Factor(Typ. 功率因数PF>0.98/115VAC PF>0.95/230VAC   PF>0.92/277VAC
LED Brand   LED品牌LM80 Rated OSRAM/CREE 3535
LED Quantity   LED数量160PCS
System Consumption     系统功耗300±1W
LED Luminous Efficiency   LED发光效率100-110 Lm /W
IP Rating  防护等级IP67
Junction Temperature    LED结温≤80
Color Temperature        色温3000K/4500K/5000K/5700K/6500K
Color Rendering Index    显色指数Ra80
Light Distribution          配光曲线Symmetric/round spot  对称式/圆形光斑
Life Span  光源寿命≥50,000Hrs(Note3)
The color of the lamp shell  灯具颜色black 黑色
Certification  认证CE  ROHS








 Mechanical specification 机械尺寸


※Application 应用场所

Gymnasium,Golf course,sports ground,airport,Shipyard etc




High Bay Light fixtures deliver high-efficiency light that reduces costs and increases productivity. These Aluminium Alloy sink brilliant luminaires are ideal for improving safety and productivity in warehouses, gymnasiums, barns, manufacturing areas, and storage space. High Bays are perfect for mid to high ceilings, and lighting surfaces  away or more. Virtually maintenance-free, these fixtures are a popular choice because of their versatility, dependability, efficiency, and safety.5 Years Warranty.
