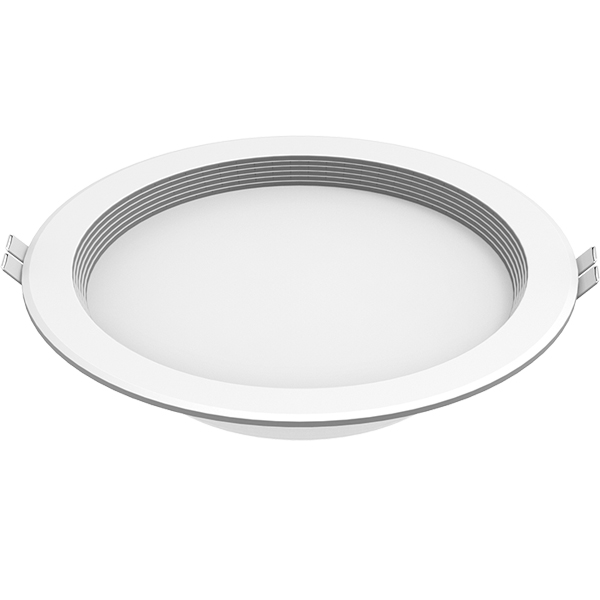

LED Down Light-SDL-10 36W

LED Down Light

Model:SDL-10 36W

Inquiry Now

Inquiry details *





Description:

Product Attributes :

◆Surface light source,luminous efficiency improved >50%

◆AL1070-99.7%Aluminum,thermal conductivity 220W/m.k

◆Using Epistar chip SMD2835 LED

◆High PF constant current driver,built-in/external

◆FRPVC cover,will never fade

◆6 different size can choose

※ Lamp parameter 规格参数

Power 功率30W36W
 Input Voltage    输入电压90-265VAC
Frequency Range   频率范围47～63Hz
Power Factor(Typ. 功率因数PF>0.95/220VAC
LED Brand   LED品牌XTEEpistar
LED Quantity   LED数量15PCS180PCS
System Consumption     系统功耗30±1W36±1W
LED Luminous Efficiency   LED发光效率90-100 Lm /W
IP Rating  防护等级IP44
Junction Temperature    LED结温≤80℃
Color Temperature        色温3000K/4500K/5000K/5700K/6500K
Color Rendering Index    显色指数Ra＞80
Light Distribution          配光曲线Symmetric/round spot  对称式/圆形光斑
Life Span  光源寿命≥50,000Hrs(Note3)
The color of the lamp shell  灯具颜色white/ silver 白色、银色
Certification  认证CE  ROHS

SDL-10 30WXTE





  ※Size 尺寸

      unit:mm



※Application 适用场所
